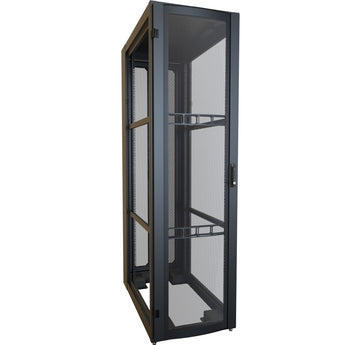

Metallic server cabinet with perforated front panel on a white background

Black door handle on a white door with a metallic grille.

Explore More IT Solutions

H1 Data Center Server Cabinet - Black

Name: H1 Data Center Server Cabinet - Black
Brand: Hammond Manufacturing
SKU: H12442U42BK
Price: 3708.57 USD
Availability: InStock

SKU# H12442U42BK - Hammond Manufacturing

$3,708.57

Shipping calculated at checkout.

Product variants

Quantity

Need it fast? Stock can vary, so reach out to us first for up-to-date availability and lead times on time-sensitive orders.

Shipping Method: LTL Freight

Estimated Ship Date: Wed Mar 4 - Fri Mar 6

Overview

IT Pros Also Viewed

Hammond Manufacturing

Adjustable Depth Vent Shelf From $155.09

5.0

Choose Options

Hammond Manufacturing

Hammond Clip Nut Hardware Kit From $34.32

Choose Options

Hammond Manufacturing

Type 3R Wiring Trough From $29.18

Choose Options

Durable Vented Sliding Shelf with perforated surface for airflow, fits standard computer racks and mounts.

Vented Sliding Shelf for 4-post rack mount, ideal for electronics cooling and storage in server or network cabinets.

Hammond Manufacturing

Vented Sliding Shelf From $168.57

5.0

Choose Options

Hammond Manufacturing

Type 1 Gutter Trough with KO From $22.52

Choose Options

Product Information

H1 Data Center Server Cabinet - Black

The H1 Data Center Server Cabinet in a sleek black finish delivers enterprise-grade infrastructure for demanding server environments. Built with robust steel construction, this cabinet provides secure mounting for multiple rack units while maintaining optimal airflow management. The professional black powder-coated exterior complements modern data center aesthetics and resists corrosion.

Featuring precision-engineered rails and comprehensive cable management systems, it accommodates standard 19-inch equipment with reliable stability. Ideal for organizations requiring scalable, organized server deployment with maximum equipment density and accessibility for maintenance operations.

Product Description

42U 24W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

42U 24W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

42U 30W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

42U 30W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

42U 31.5W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

42U 31.5W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

45U 24W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

45U 24W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

45U 30W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

45U 30W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

45U 31.5W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

45U 31.5W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

48U 24W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

48U 24W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

48U 30W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

48U 30W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

48U 31.5W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

48U 31.5W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

52U 24W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

52U 24W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

52U 30W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

52U 30W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

52U 31.5W 42D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

52U 31.5W 48D H1 Data Center Server Cabinet (Black)

Available in 42U, 45U, 48U, and 52U mounting heights.
24” Width Frame Features:
- Generous cabling space
- The cabinet top includes four (4) 3.5” wide cable entry holes.
30” & 31.5" Width Frame Features:
- Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- The cabinet top includes four (4) 3.5” wide cable entry holes.
- Support for vertical cable managers without obstructing mounting rails.
Available in 42" and 48" overall depths.
Two (2) large 4" x 7" knockouts (per side) for cable pass-through.
Side panels are sold separately.
- 42U and 45U are full-height panels.
- 48U and 52U are split height panels.
48" depth cabinet includes:
- Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.
C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.
Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
Cabinet doors and optional side panels constructed in 16-gauge mild steel.
Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

USMCA Compliant:

Yes

REACH Compliant:

Yes

Standards:

culus, pci, taa-compliant

Product Specs

Downloads

Cart ⁰

Your cart is currently empty.

Start Shopping

H1 Data Center Server Cabinet - Black

Product Information

Product Specs

Downloads

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview

Hammond Catalog

Rackmount Solutions Overview
